Heavy Engineering & Tailor Made Assembly

Pressure Testing With Pneumatic Pressure :- 42 kg And Hydronic Pressure 57kg

TAILOR MADE ASSEMBLEY

Step 1:

         Diffuser with Ring Section Assembly

  • Refer to appropriate Risk Assessment.
  • Refer to appropriate COSHH assessment-as they are in use.
  • Only use in a well ventilated area.
  • Practice good personal hygiene at all times.
  • Wear appropriate PPE & RPE at all times.
  • LIQUID NITROGEN TO BE USED BY TRAINED PERSONNEL ONLY.

Step 2:

         Standard Operating Procedure

Health, Safety & Environment
  • Refer to appropriate Risk Assessment.
  • Refer to appropriate COSHH assessment-as they are in use.
  • Only use in a well ventilated area.
  • Practice good personal hygiene at all times.
  • Wear appropriate PPE & RPE at all times.
  • LIQUID NITROGEN TO BE USED BY TRAINED PERSONNEL ONLY.

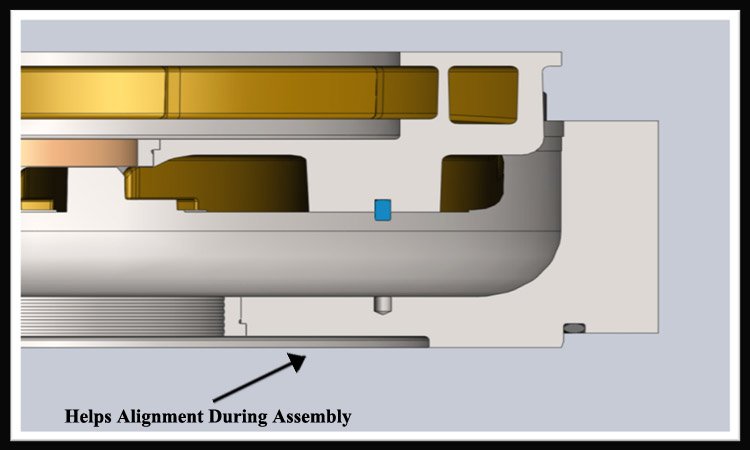

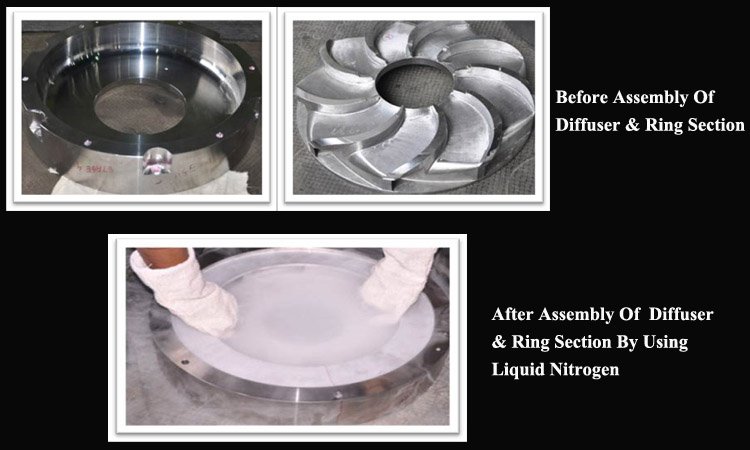

         Diffuser with Ring Section.

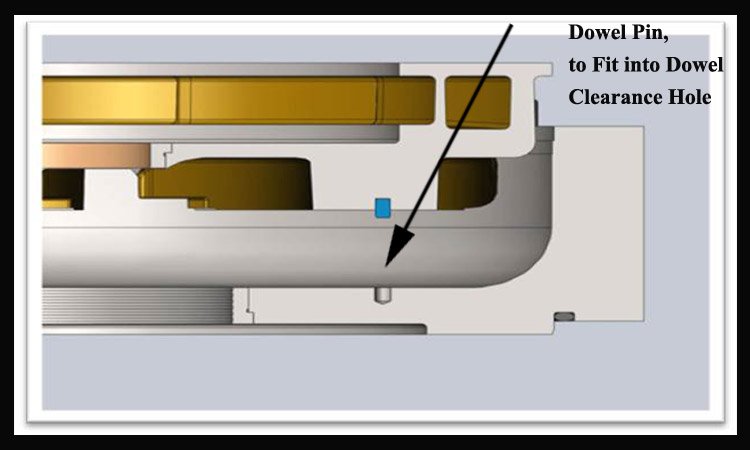

Mark centerline of dowel/dowel clearance hole on both ring section
and diffuser for alignment – during fitting of diffuser into ring section.

Step 3:

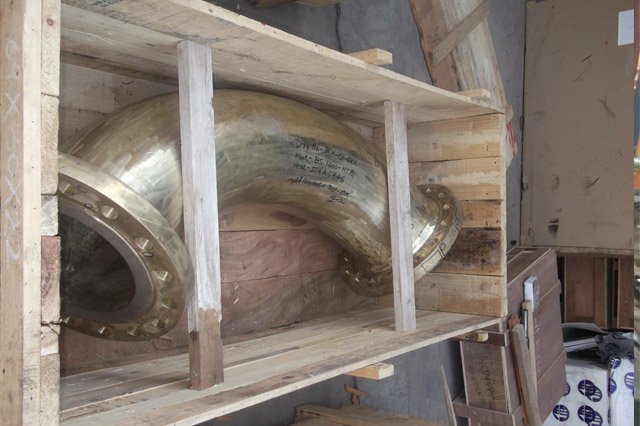

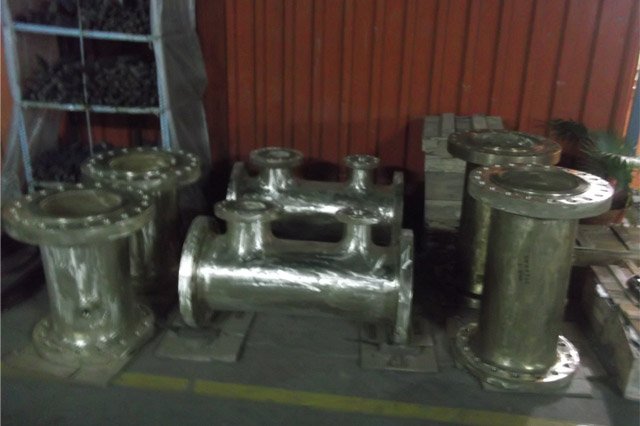

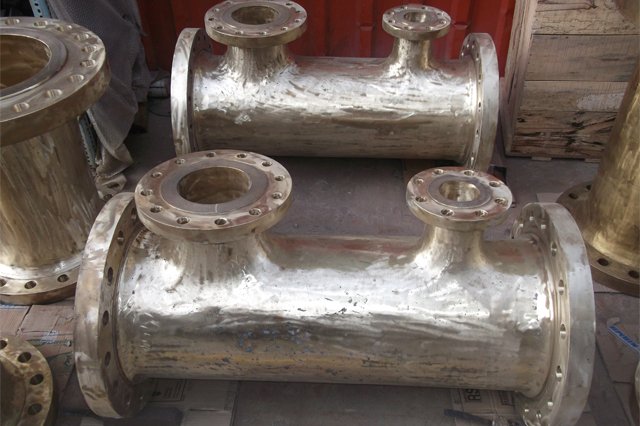

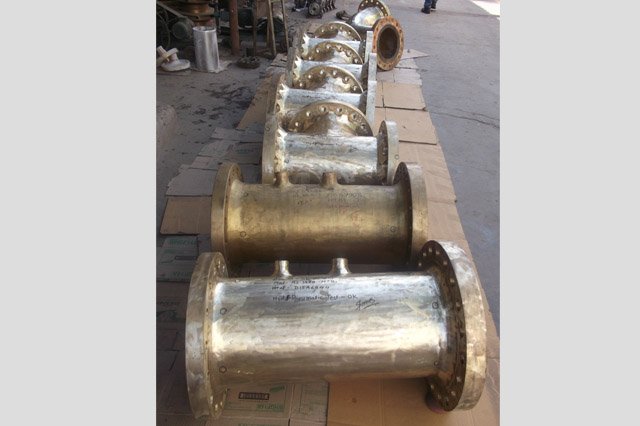

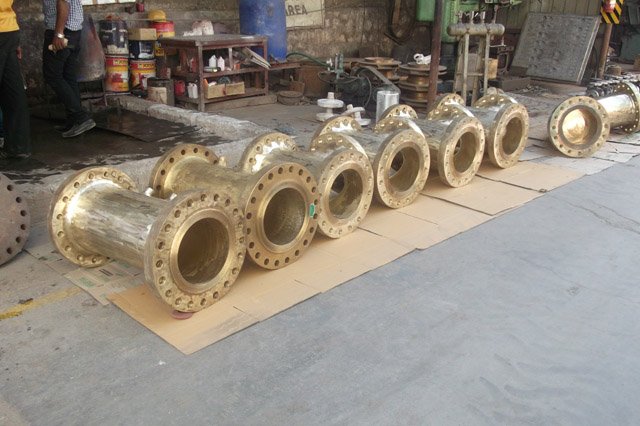

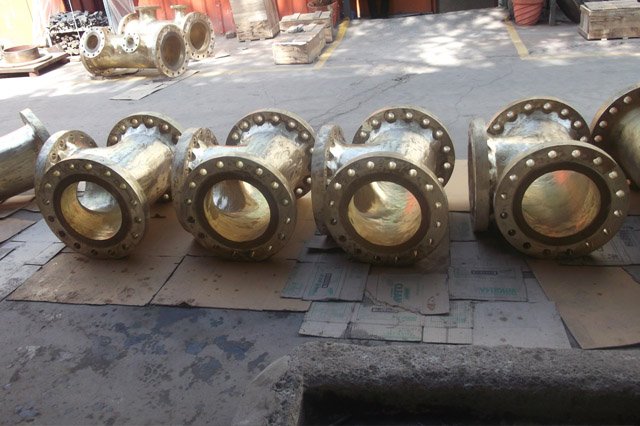

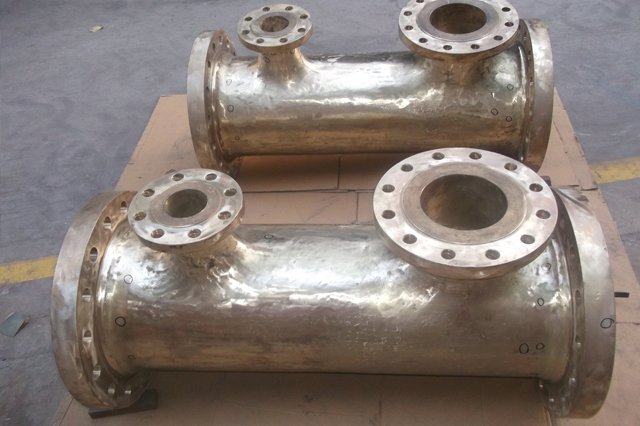

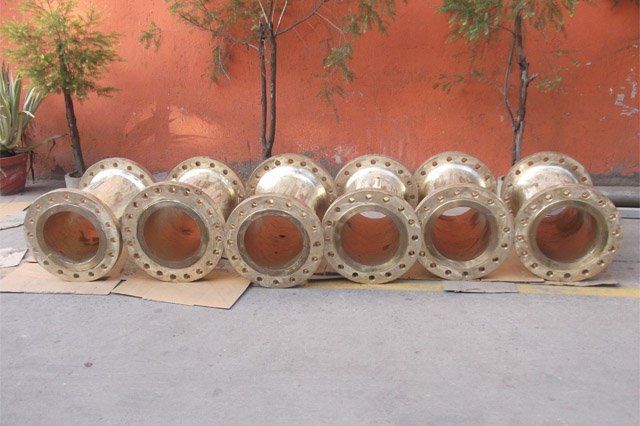

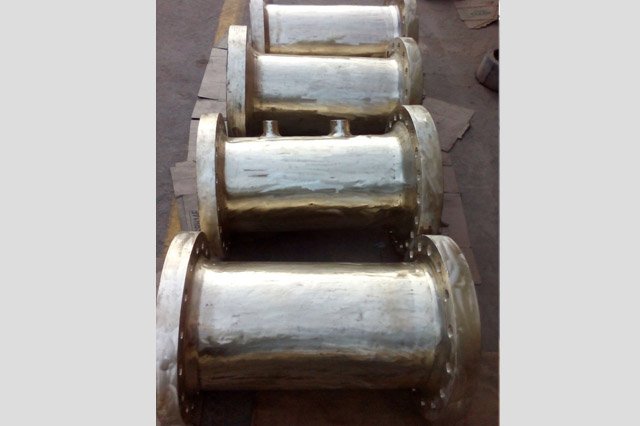

Brass Pipe
Brass Pipe
Brass Pipe
Brass Pipe
Brass Pipe
Brass Pipe
Brass Pipe
Brass Pipe
Brass Pipe
Brass Pipe

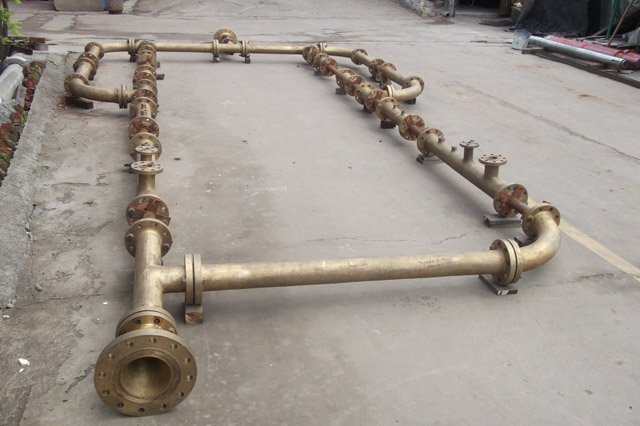

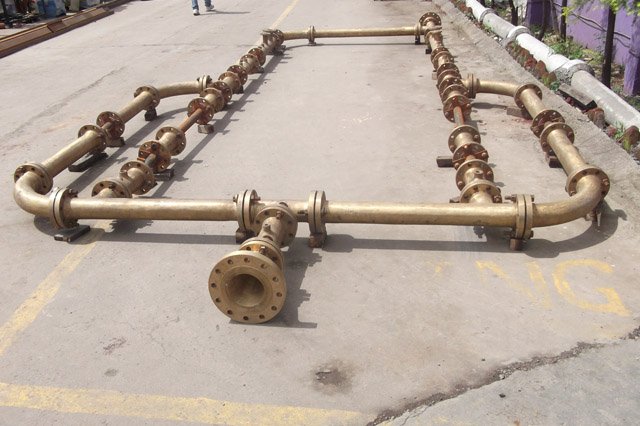

Brass Pipe Assembly
Brass Pipe Assembly
